Making Corner Block

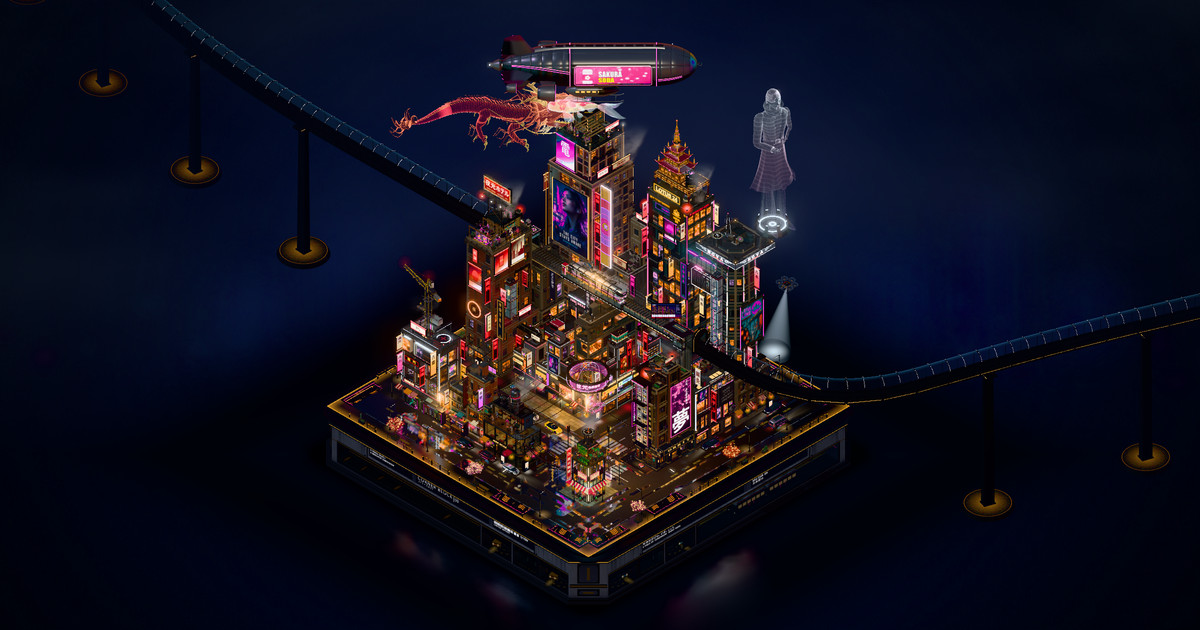

Corner Block is one web page. It draws a rain-soaked, isometric cyberpunk city block on a collectible display plinth, live in your browser. You can orbit it, zoom into any street, and jump between a few fixed views: the whole city, the district, the cinema and the junction.

The traffic is a simulation with a fixed seed, so it runs the same way every time. A train comes in from the distance through a glass tube and crosses the block on a raised viaduct. A hologram dragon circles the towers. An airship drifts overhead, glass elevators climb the towers, and a giant hologram figure stands on a rooftop deck. A Tour button flies the camera through the block for you.

These are real before and after renders from my log. The run number is the step in my notes. By Run 240 the log held 173 numbered runs, and I had rejected 20 of them.

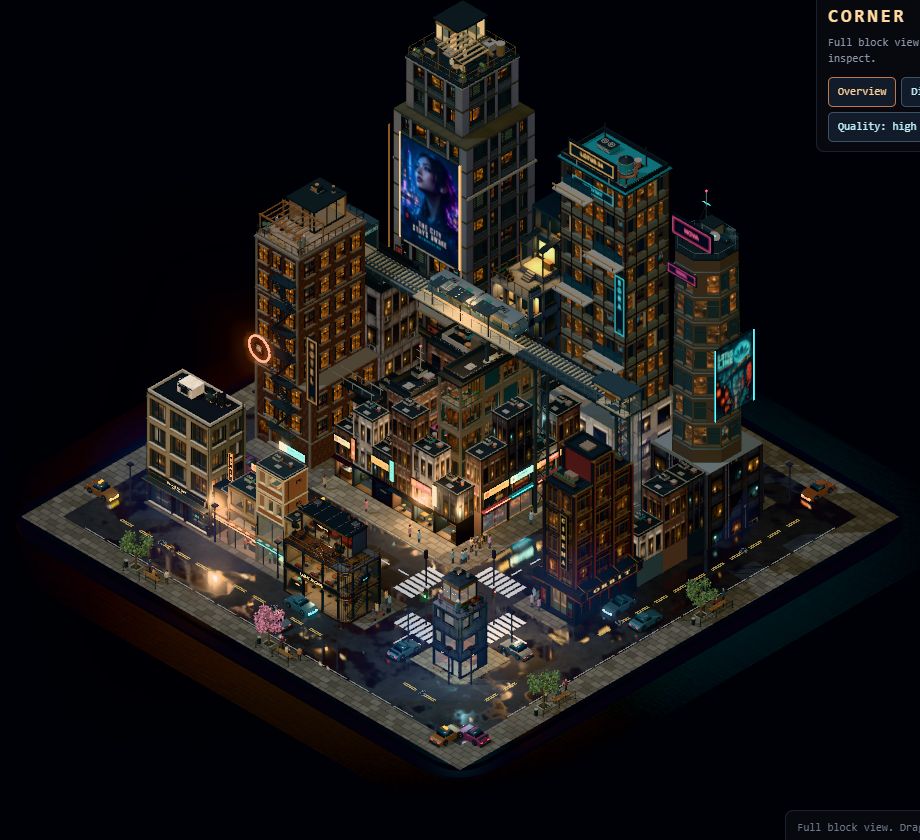

Run 64 was the checkpoint I accepted. It changed one light: the street fill went from 1.50 to 3.25. A first try at 5.0 flattened the detail, so I backed off.

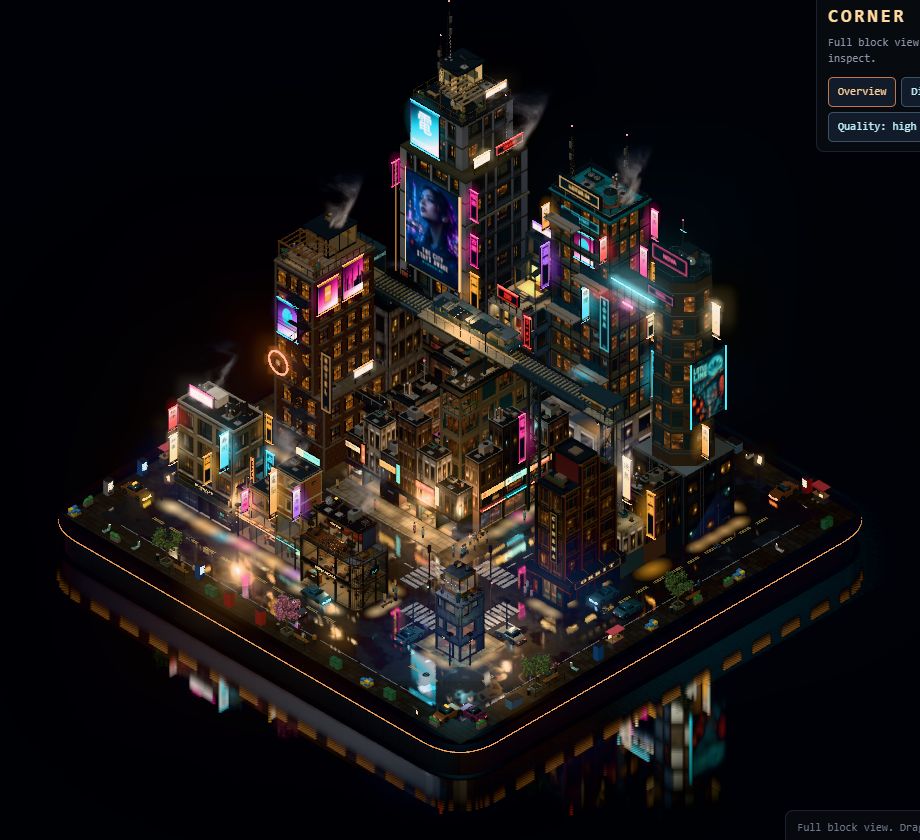

After that the loop started. It added signs, light spilling onto the pavement, wet dark paving, a deeper plinth, steam, wet roads and bloom. By Run 84 the night grade and the mirror floor were in. I threw out plenty too. A masonry pass in Run 65 moved the picture by 0.07 out of 255. That counts as no change, so it went.

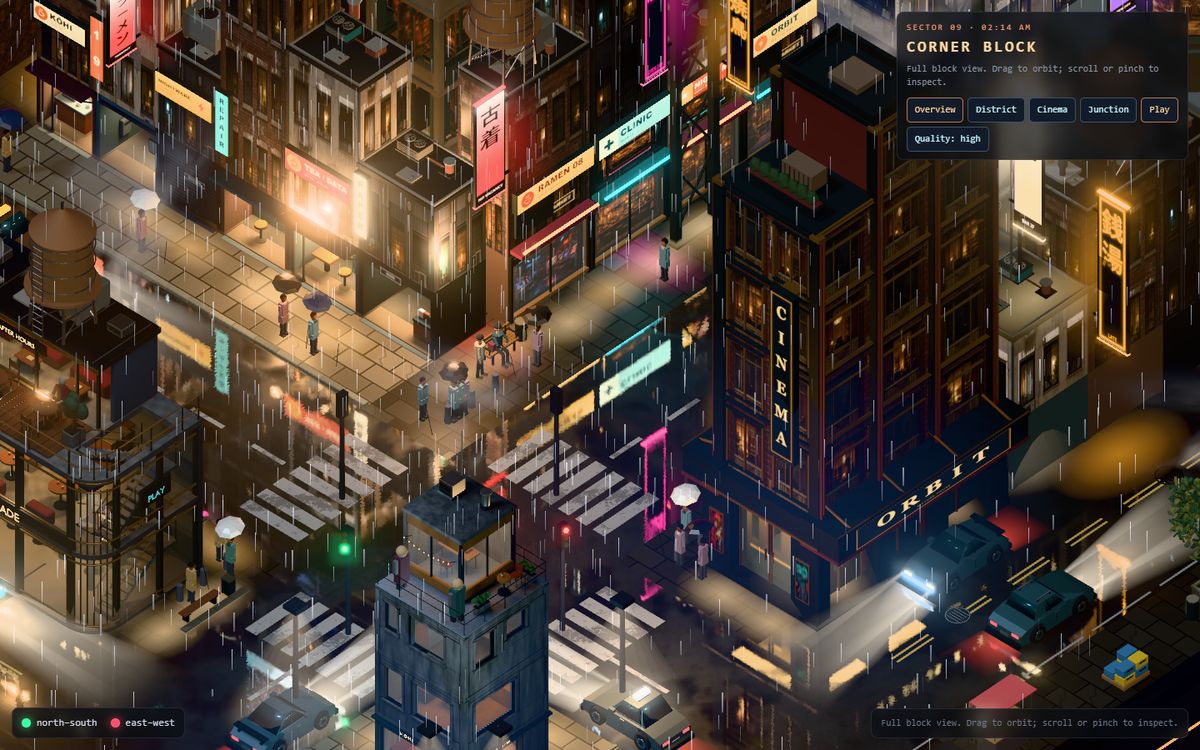

By Run 97 the street had rain, umbrellas, live neon and headlights. People walked here then. Later I ruled that no one walks the street at all. Life moved up to the terraces.

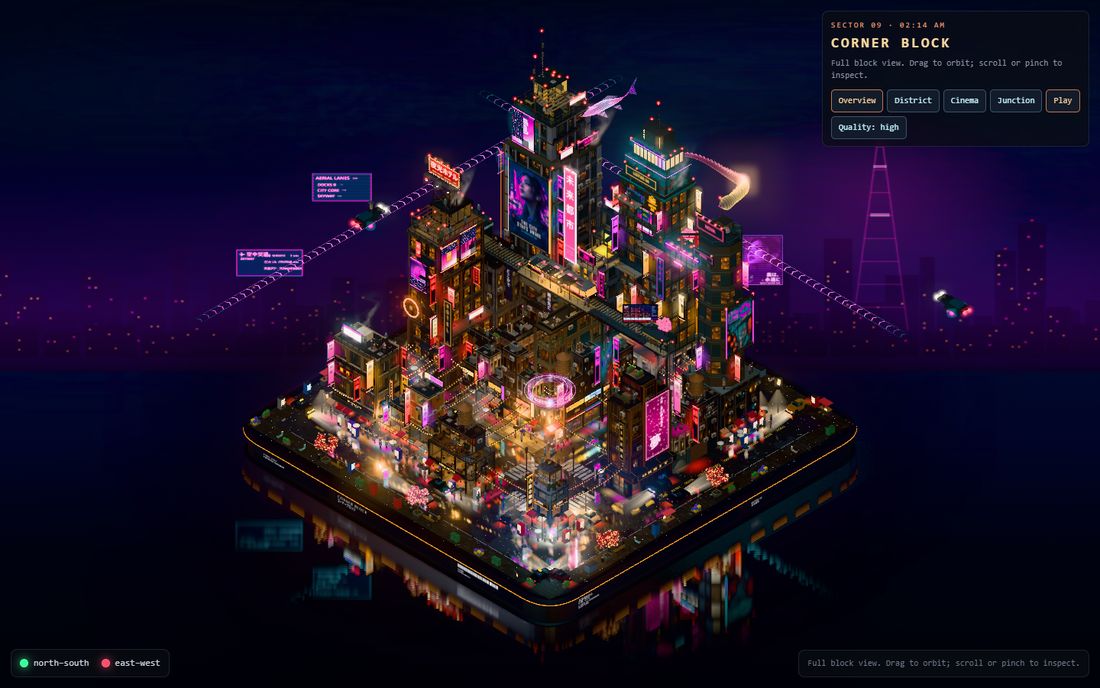

Around Run 136 the city got a studio backdrop. I looked at it and told the agent it looked disgusting, and that the flying cars sliding in and out of frame looked wacky. The backdrop was rebuilt in Run 150, and the flyers got lanes that start and end off frame.

Then I told the agent the city was lagging a lot. In Run 155 it removed 681 clutter meshes, and that is where the standing rules above came from.

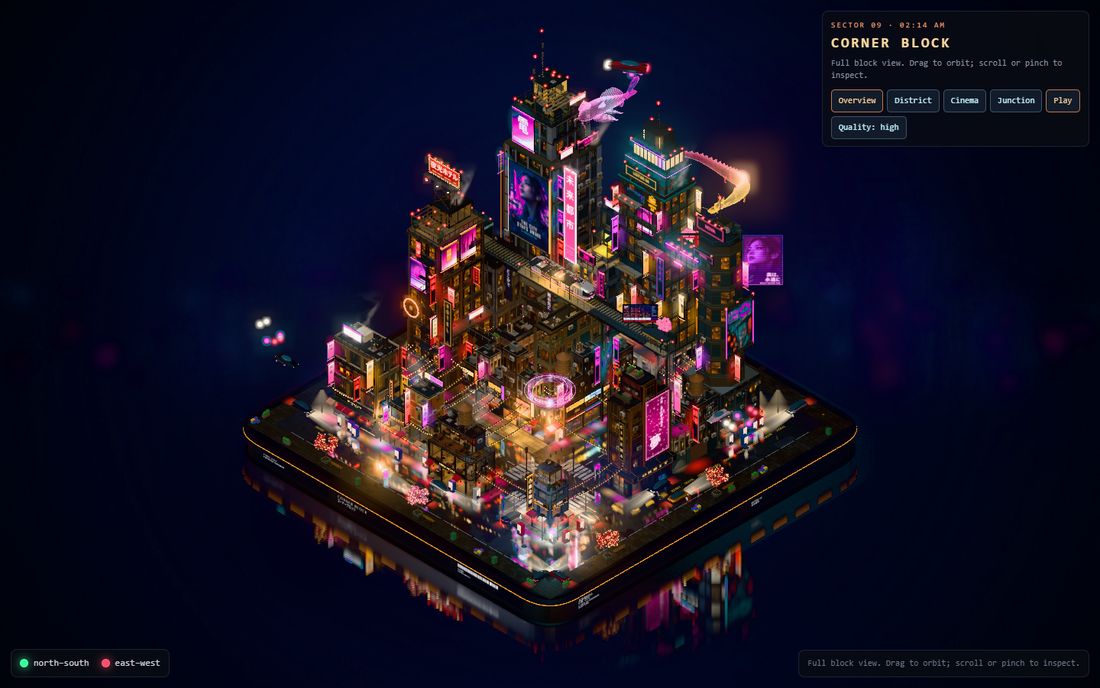

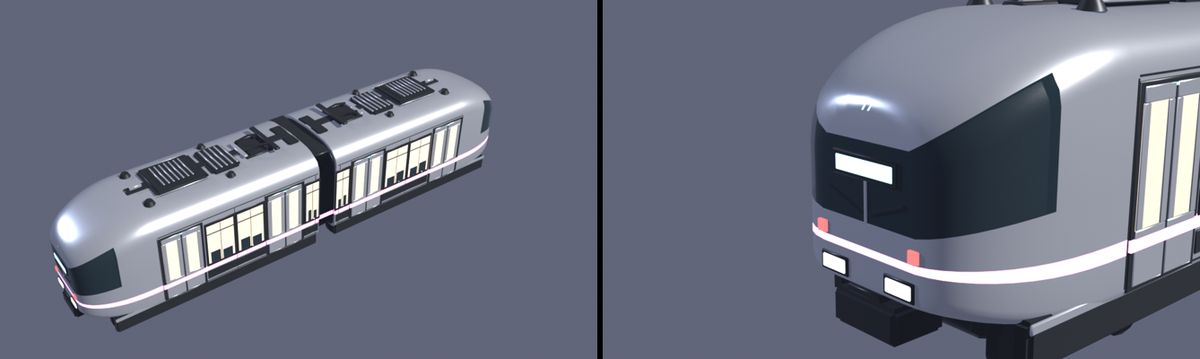

The Blender train in Run 157 set the bar. It is 19,616 triangles. I told the agent, "The train was exceptional. I loved it. Can you do more like that?" I also told it the buildings needed proper meshes, built the way it built the train.

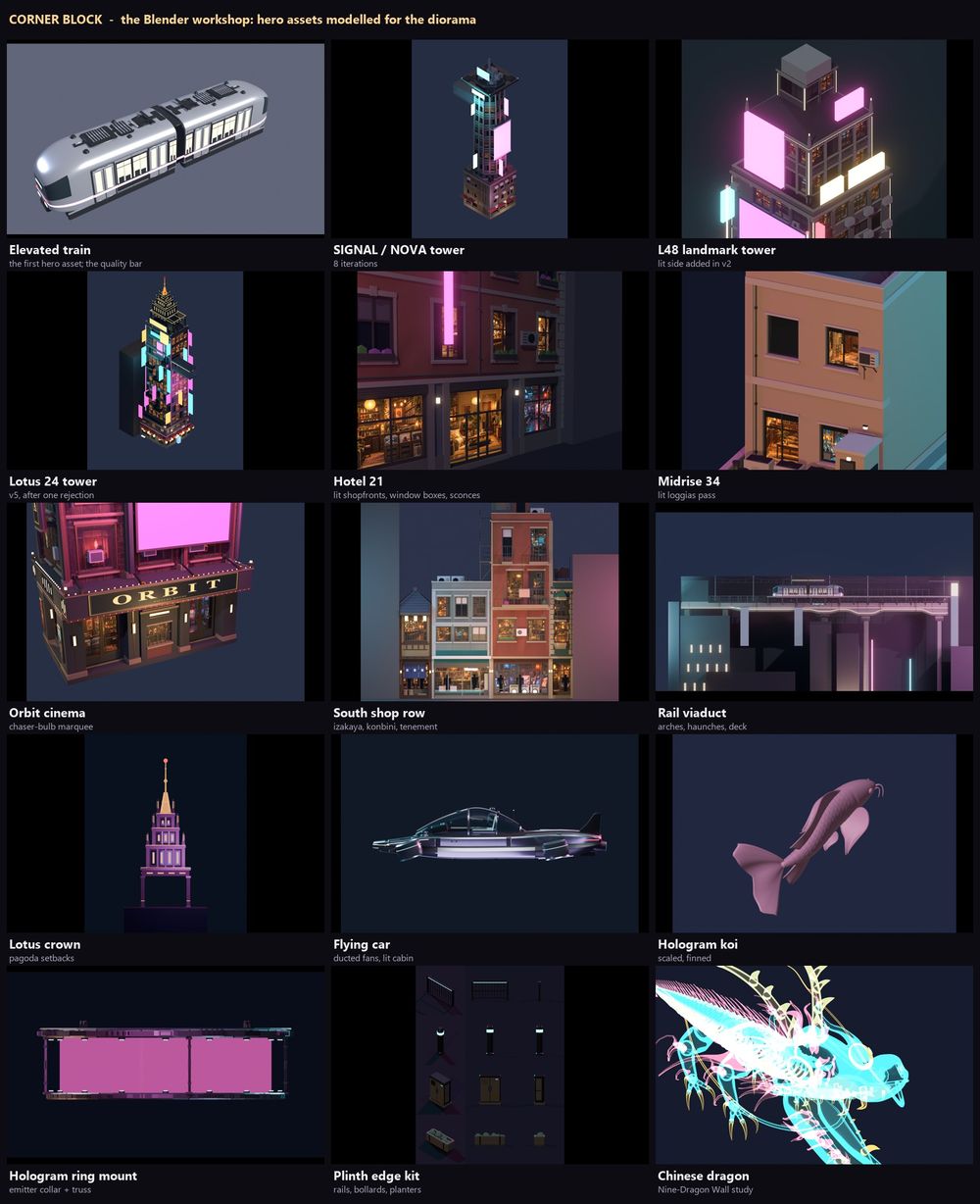

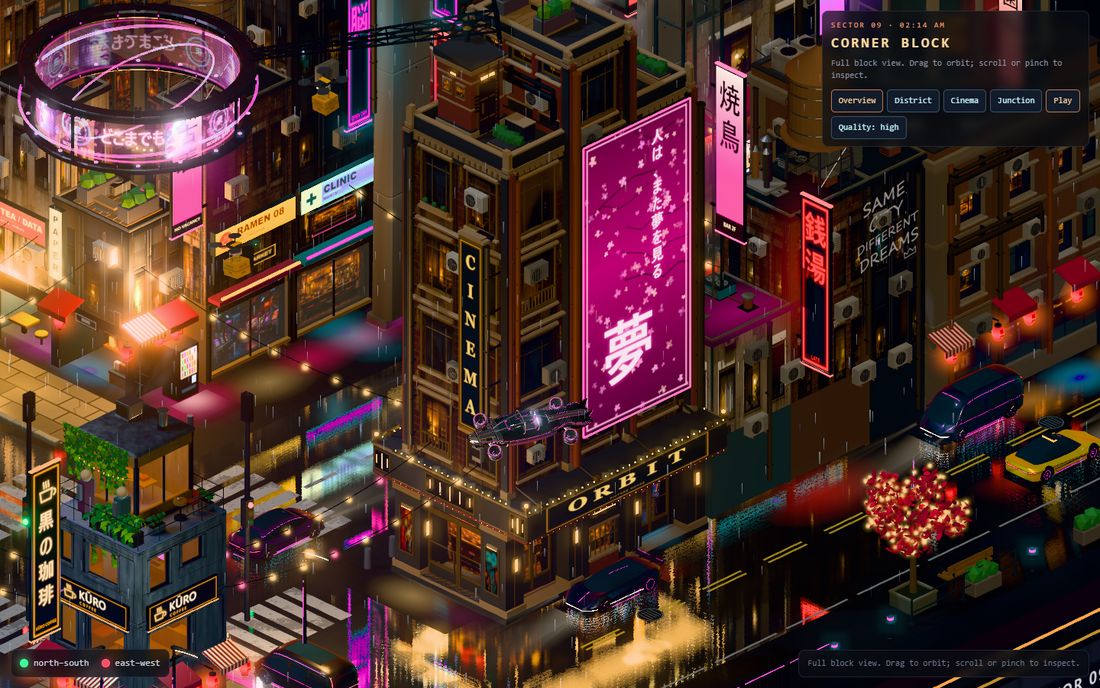

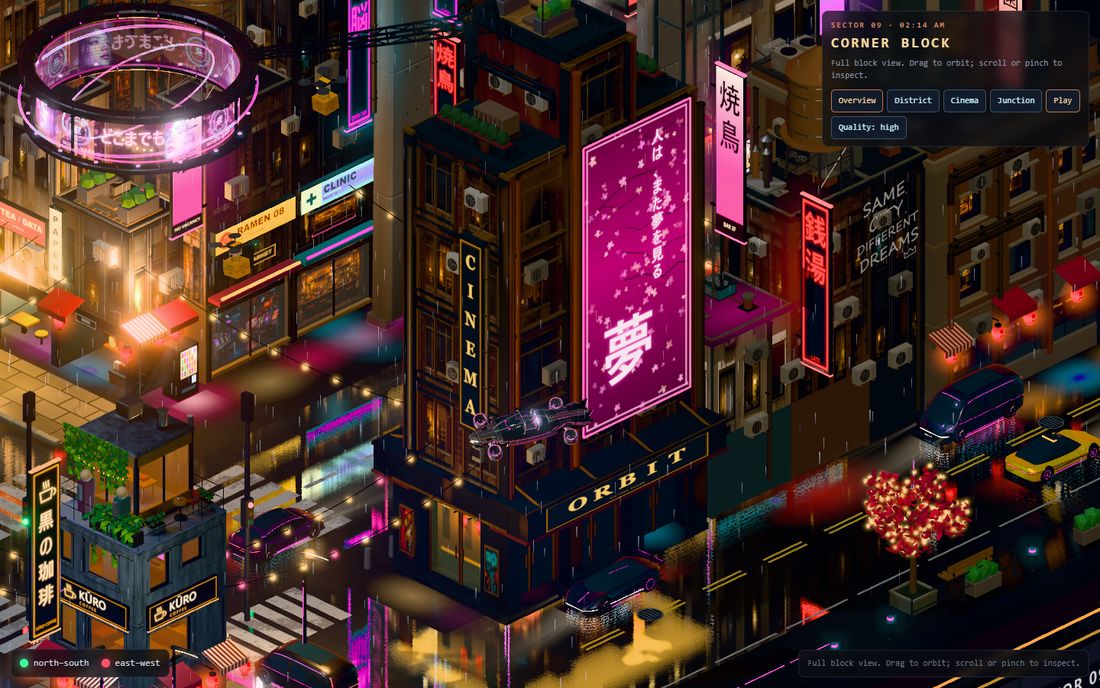

The agent measured every building, ranked them by how visible and how flat they were, and rebuilt them in Blender one at a time: a midrise, the signal tower, the hotel, a landmark tower, the viaduct, the shop row, the cinema and the Lotus 24 tower. The first six rebuilds cost nothing in frame time: 57.0 ms against 57.1 ms over seven interleaved rounds.

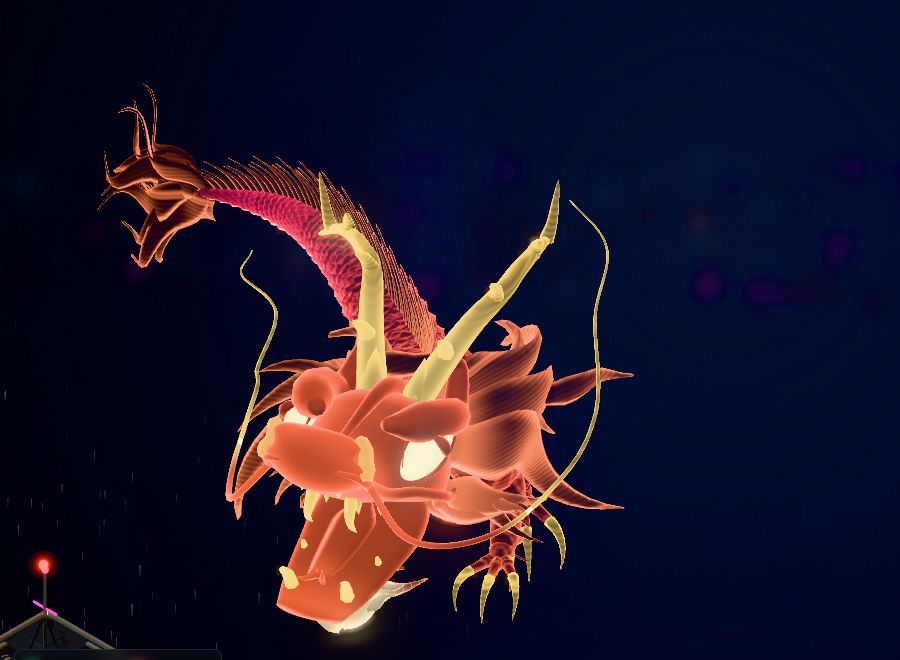

The first dragon looked like a worm. I said so, and it got a Blender head and legs. The face still looked a little weird to me. An art-director pass found the cause: the shader bent the head about 29 degrees and stretched it 1.55 times in one direction, so every re-sculpt arrived squashed. The fix was a rigid, uniformly scaled head.

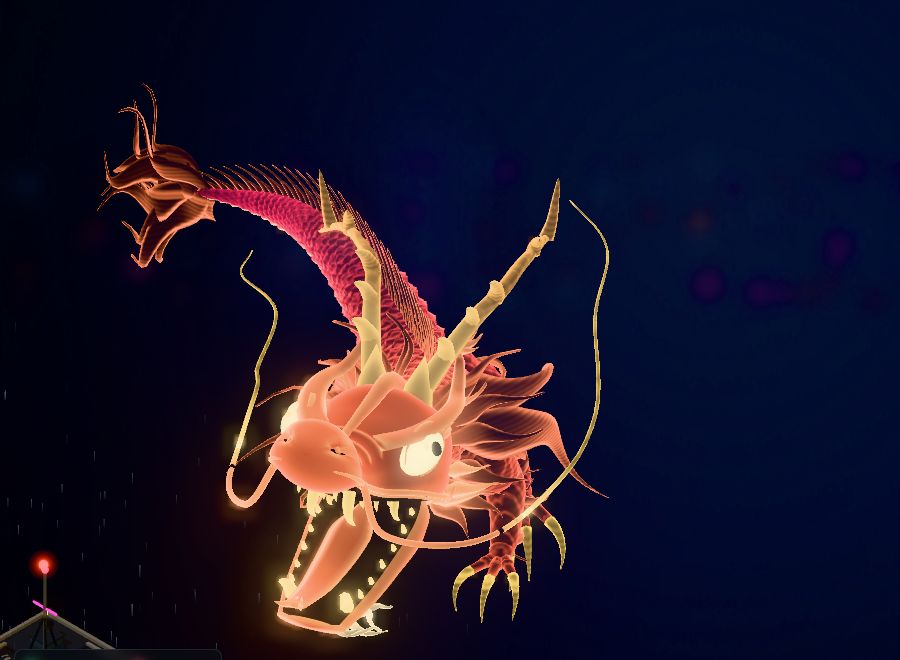

Then I asked the agent to go online and research how a Chinese dragon is made properly. It came back with the Ming Nine-Dragon Wall: an ink-black open mouth, contrast over scale, saw-tooth teeth. Run 233 shipped that face. The eyes were next. I said they looked bubbly, like goldfish eyes. They became deep-set slanted almonds with a glowing gold slit.

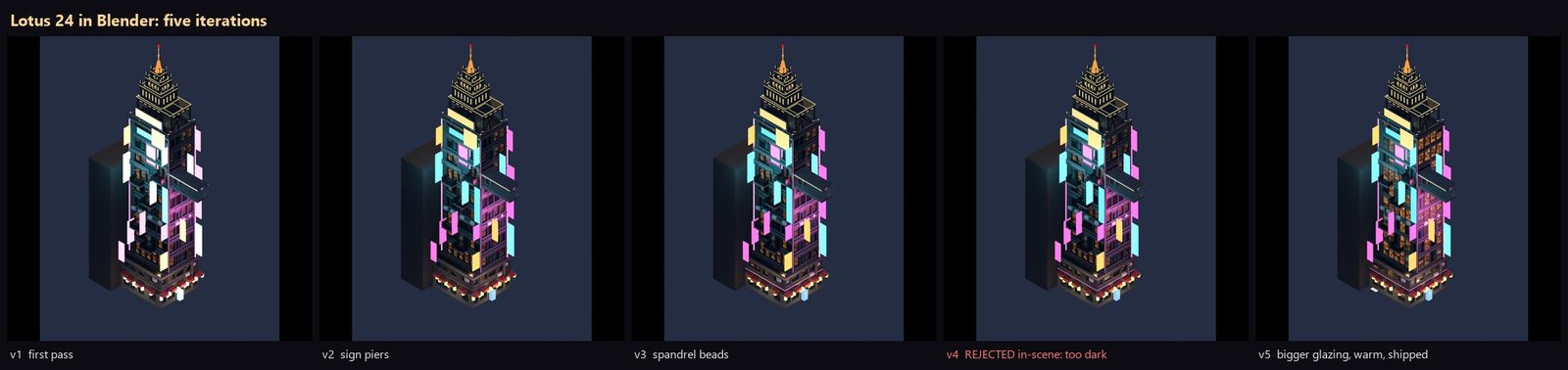

The crown on the Lotus 24 tower looked fine in the Blender preview and failed in the scene as a dark grid. I rejected version 4, and version 5 fixed it. Later I looked closer at the gold crown and called it low-poly, low quality and sloppy. It was rebuilt as a detailed pagoda with lacquered crimson tile roofs and gilded trim.

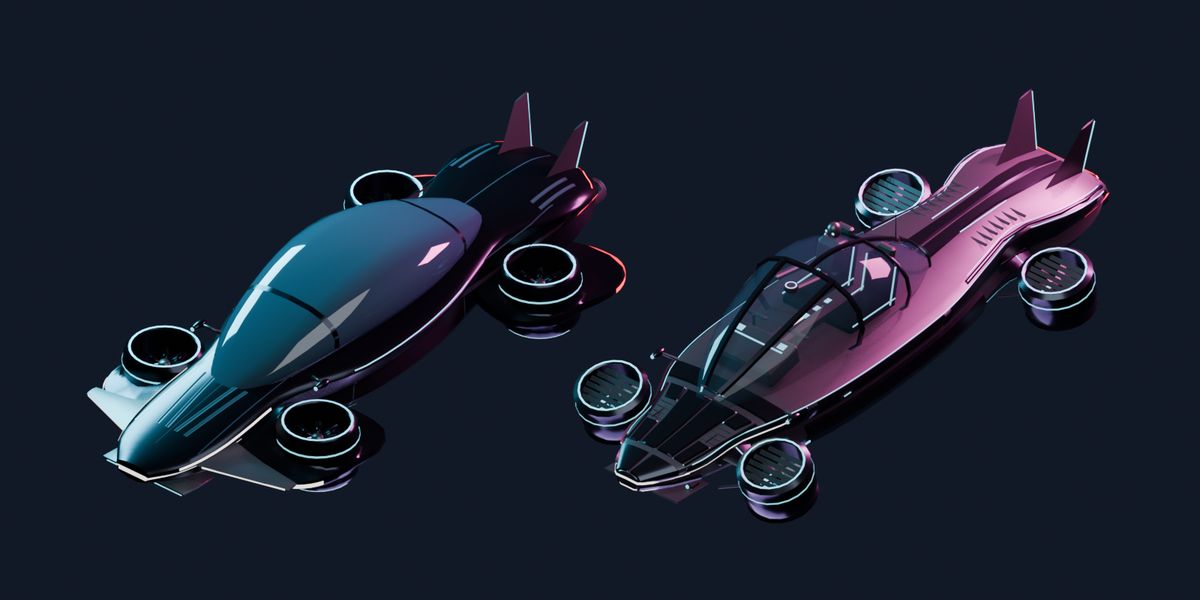

I told the agent the futuristic flying cars were good but could get better, definitely. The next version got a lit cabin with a pilot and ducted fans. Later the agent rebuilt them again, as a pearl coupe with magenta underglow and an orange taxi.

After the realism passes I watched it live and said the quality was up but the city felt dead: "there was so much more stuff." That was not a rollback. It was a call for more life on top.

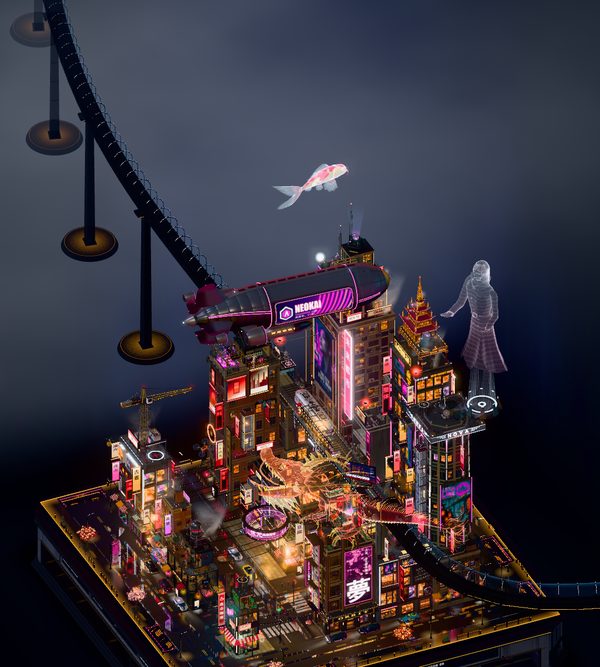

I approved a whole wave of it: drones landing on roof pads, glass elevators, a rooftop crane, living windows, video billboards, an ad airship, a rooftop bar with a DJ, street-sweeper robots, rain swells with lightning and synthesized city sound. Everything except birds. Then I handed over the PC for the night. Eleven agents ran in parallel, held back by a memory guard so the 16 GB machine wouldn't thrash. The elevators, the crane, the airship and the lightning made it into the city. Later I said there were too many drones, "a nuisance", and they went from 12 to 5.

I also said the back of the block looked a little boring. I wanted something perpetual, a loop, a good surprise when people look back. The agent built the city's source code: a data waterfall that only fades in when you orbit round to the back.

The frame is draw-call bound, at roughly 1,100 to 1,500 draw calls. When I said the city was lagging, the cleanup in Runs 154 and 155 took the frame time from 82-85 ms to 59-64 ms, about 28 percent. Run 162 made the mirror passes emissive-only and took the frame from about 44.6 ms to 36.6 ms. Run 269 cut CPU frame time by 16 percent, because hidden objects no longer got recomputed every frame. Run 292 halved the time to the first frames.

Those numbers come from headless runs at 1280x720 on an integrated AMD GPU, with the PC often busy. I trust them as comparisons inside one session, not as a score.

Several speed ideas did nothing, and I threw them out: culling the shadow pass, culling the road mirror, and merging the material tables. One bad promotion got through once and the verify step caught it, which is why verifying comes before promoting.

The dragon was a switch for a while, because I thought it took a lot of rendering. Now it is always on.

In October I ran a stricter loop just for speed, on my laptop's RTX 3050. A profile showed the problem plainly: about 1,300 draw calls a frame at about 18 microseconds each, which is about 23 ms on its own. Switching shader programs took 42 percent of the frame. One change stuck: skipping the matrix updates for objects that never move, worth about 1 ms. The city settled at about 24 ms a frame, around 40 frames a second.

Then I went after the big levers, and the agents measured before building anything. Merging draws looked like a 1.9 ms win on paper. When they checked which draws could really be merged, it was 29 out of 1,016, so that project stopped before anyone built it.

WebGPU was next. On my laptop, the WebGPU renderer in three.js r170 was slower, not faster: on the same models, 25 ms became 41 ms. Its render bundles, which record static draws once and replay them, looked far faster but drew the wrong picture. The cause was a bug inside three.js. A shadow render inside the bundle cuts the recording short, so the bundle replays with its camera frozen. The tell was two camera angles giving a difference of exactly zero. With a one-line fix the bundles really were about 2.6 times faster in the lab. But only 37 to 47 percent of the city's draws stay still enough to live in a bundle, and it needed about 80. So I closed that road.

Some of the worst problems showed no error at all. The cream "clouds" on the street were road clear-coat. The beige ground on the back was specular sheen. The flying cars sat frozen at time zero because of a hidden-mesh hook. A mirror pass kept re-showing a hidden dragon from Run 160 until Run 231 caught it. Bad values blacked out the whole frame twice, in Runs 90 and 149. I found each of these by bisecting, not guessing.

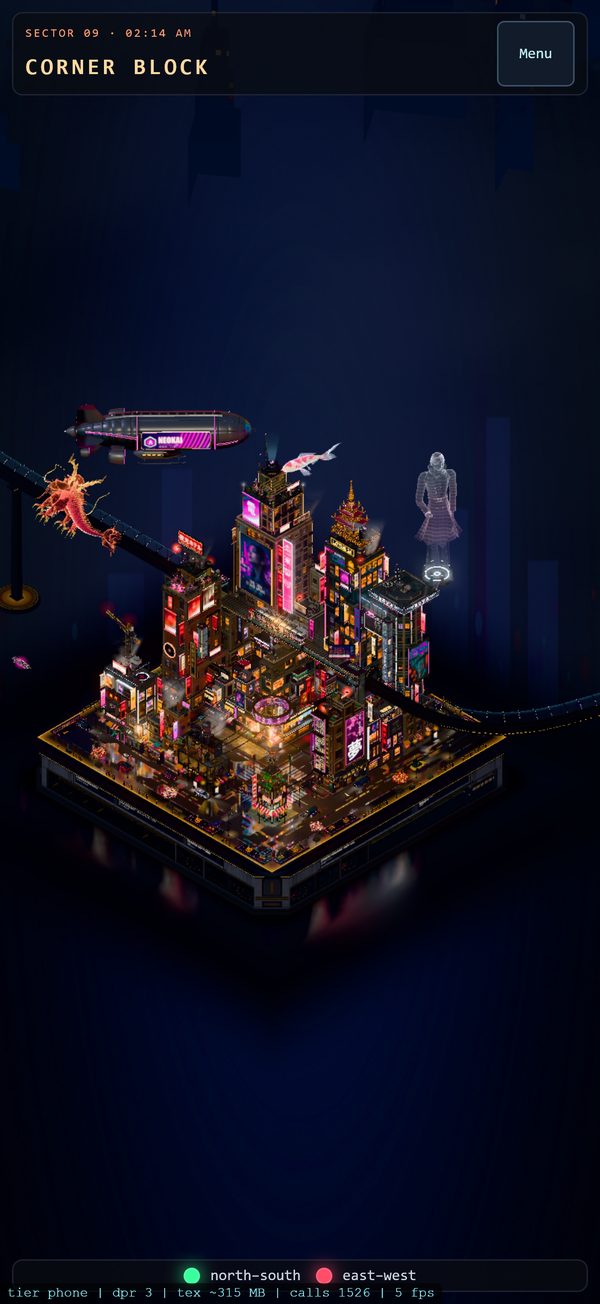

Early on I made every keep-or-cut call myself. Later I stopped answering every judgment call. I told the agents to ask an Opus advisor for a senior engineer's opinion and to bring me only what needs me, like a test on my own phone.

The loop also kept a file of its own mistakes and turned each one into a rule for the next job. One of them: check what can really be changed before measuring the best case. Another came from my 16 GB laptop. With several chats open, timing runs use one browser at a time and wait for a quiet machine, often at night.
